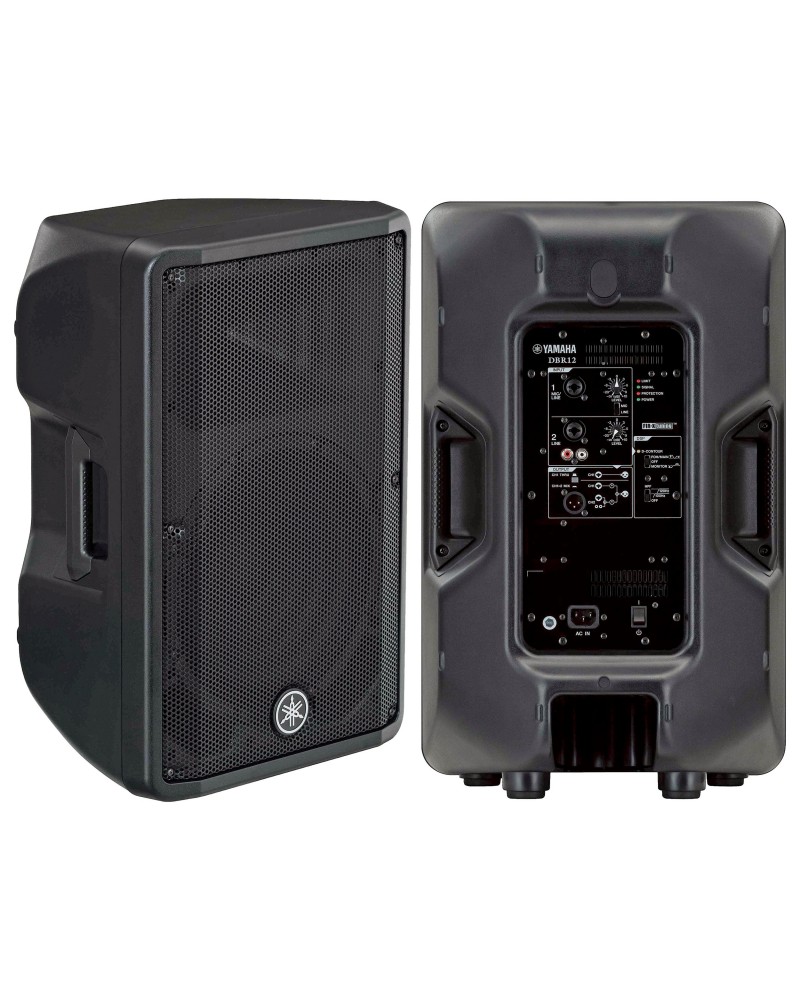

Yamaha Audio DBR12, PAIR
Yamaha Audio DBR12, PAIR
Product Code: | Yamaha Audio DBR12 |
Availability: | In Stock |
-
RM5,496.00
RM4,819.00
- Ex Tax:RM4,819.00
0 reviews Write a review
-1000 watts class D power
-Lightweight enclosure
-Broad coverage
-Type: 2-way, Bi-amp powered speaker, Bass-reflex type:
-Frequency range (-10dB): 52Hz - 20kHz
-Nominal coverage, H: 90°, V: 60°
-Components: Diameter:12" cone, Voice Coil:2", Magnet:Ferrite
-HF: Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
-Crossover: 2.1kHz: FIR-X tuning (linear phase FIR filter)
-Output power: Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
-I/O
connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2
(Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
-Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
-Heat dissipation: Fan cooling, 4 speeds
-Power requirements: 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
-Power consumption: 74W(1/8 Power Consumption), 18W(Idle)
-Cabinet material: Plastic
-Finish: Black
-Handle: Side x 2
-Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
-Pole socket: 35mm (Bottom x 1)
-Dimensions: 376mm (14.8")
-H: 601mm (23.7")
-D: 348mm (13.7")
-Net weight: 15.8 kg (34.8 lbs)
-Accessories: BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
